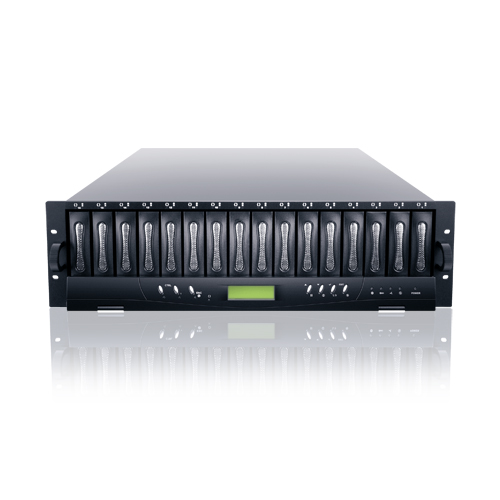

AccuSTOR AS316X - 3U 16 Bay Rackmount SAS/SATA to SAS JBOD with SAS Expander

Discontinued. New Replacement Model AccuSTOR AS316X6S

The AccuRAID AS316X Series is a 3U rack-mountable SAS JBOD rackmount for high capacity storage solution. Utilizing the latest SAS technology, AS316X provide SAS host to 16 high performance SAS hard drive or high capacity SATA drive. With the included two of SAS expander, AS316X is capable to expand up to 7 units using Tree-Structure, which equal to 112 bays 224TB with 2TB hard drives. RAID protection provided by LSI, Areca or Adaptec SAS RAID controller to ensure the performance and redundancy. Redundancy Power supply, hot swappable cooling fan and cable-less backplane design provide the best performance and reliability for high capacity storage. The versatility of the AS316X JBOD storage enables you to configure the specific combination of storage resources you need now, and add more storage volume later, while ensuring life-cycle and usability of your hardware for the long-term.

Note: Please allow 3 days for rackmount testing before shipment.

• Supports high performance SAS hard drives and cost-effective SATA drive.
• 16 hot-swappable drive bay.
• Supports SAS Host interface. Both SAS Host Bus Adapter or SAS RAID card is supported, including LSI, 3Ware, Intel and Areca RAID card.
• Fully support MAC OS using Areca RAID controller.
• Includes two SAS Expander for tree-structure expansion. Supports up to 7 AS316X with 112 bays, 224TB total storage.
• Full modular design: Cable-less backplane design, two redundancy power supply and hot-swapple cooling fan provide stable and easy maintanence.


Model	AS316X
Form Factor	3U Rackmount
HDD Trays	16 Hot-Swappable 3.5"
RAID Level	JBOD (RAID supported by RAID controller)
Maximum Capacity	48TB, expandable to 336TB
Host Interface & Transfer Rate	SAS, Mini-SAS / SFF-8088 x 1
Expansion Ports	Mini-SAS / SFF-8088 x 2 (up to 7 units supported)
Drive Interface	SAS / SATA
Cooling Fan	4 Hot-Swappable Modules & Blowers
Power Supply	460W X 2 Redundant
Control Interface	LCD Panel, RS232, RJ-45 Ethernet
Status Indicators	1 LED/ HDD
Dimension (in)	19"W x 24"D x 5.5"H
Weight (lb)	49
Safety Regulations	CE, FCC, UL, RoHS
Limited Warranty	3 Years

Model	AS316X	AS316X8T	AS316X16T	AS316X32T	AS316X48T
Hard Drive	No HDD  Bundle	500GB  SATA * 16	1TB  SATA * 16	2TB  SATA * 16	3TB  SATA * 16
Total Storage Size	N/A	8TB	16TB	32TB	48TB

Note: All hard drive bundles are pre-installed and tested before shipment. Hard drives are then packaged individually to avoid damage during shipping.
