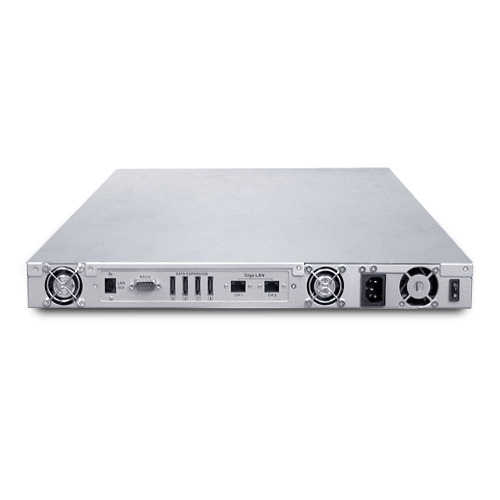

The EliteRAID ER104I Series is a revolutionary expandable 4 bay iSCSI rack mount solution. This revolutionary design allows expanding up to 8 drives with ES104T, MS4T and MS2T or other eSATA JBOD unit. With up to 4TB total storage capacity, this unit is also easily expandable up to 8TB, and will be perfect for any application that requires a large portable storage solution. Beside RAID5, Mirroring (RAID 1) and Stripping (RAID 0), ER104I supports RAID6 to protect against up to 2 hard drives defect. Utilizing both SATA I and SATA II host interfaces, and dual gigabit Ethernet port (up to 200MB/s), the ER104I is guaranteed to achieve the best performance with fail-safe file protection.
Unique Features
- Revolutionary 4 + 4 Form Factor.
- 4 bay master unit, expandable to 8 bay using 4 bay JBOD enclosure.
- Connects to JBOD unit via SATA II eSATA cable.
- Available in 1U Rack Mount or 4 bay Tower.
- Dual Gigabit LAN Connections, up to 200MB/s.
- Supports RAID 0, 1, 3, 5, 6, 30, 50, 60, JBOD.
| Model |
ER104I |
| Form Factor |
1U Rackmount |
| CPU |
Intel 80331 64bit 500Mhz RISC processor |
| RAM |
DDR 333 512MB |
| HDD Trays |
4 Hot-Swappable 3.5" |
| RAID Level |
0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, JBOD |
| Maximum Capacity |
1TB per Hard Drive |
| Auto Rebuilding |
N/A |
| Hot-Spare |
Yes |
| Host Interface & Transfer Rate |
Dual Gigabit Ethernet (Up to 200MB/s) |
| Drive Interface |
SATA I & SATA II |
| Cooling Fan |
3 x 1.5” Cooling Fan |
| Power Supply |
Input:100V~240V
Output:50~60Hz 200W |
| Control Interface |
N/A |
| Status Indicators |
4 LEDs for HDD, Temperature and Fail LED |
| Number of Hard Disk Supported |
4; Extends to 8 HDDs |
| Management UI |
Web or VT-100 |
| Supported OS |
Windows XP/2000/2003, Mac OS X or above,
Linux 2.4 or above |
| Dimension (in) |
19" W x 18" D x 1.7" H |
| Weight (lb) |
15.4 |
| Safety Regulations |
CE, FCC |
| Model |
ER104I |
ER104I1T |
ER104I2T |
ER104I3T |
ER104I4T |
| Hard Drive |
No HDD
Bundle |
250GB
SATA II *4 |
500GB
SATA II * 4 |
750GB
SATA II * 4 |
1TB
SATA II * 4 |
| Total Storage Size |
N/A |
1000GB = 1TB |
2000GB = 2TB |
3000GB = 3TB |
4TB |
