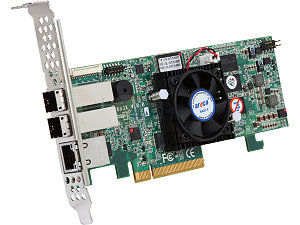

The HA-ARC-1886-8X high-performance PCIe 4.0 x8 to SAS RAID host adapters can provide up to (128) SAS/SATA 12G and 6G devices per ports, using SAS expander. Compare to the second generation, the new HA-ARC-ARC-1883X based on dual-core RAID on chip processor, increasing the performance up to 30%. Based on the same RAID kernel of field-proven external RAID adapters and RAID subsystem, HA-ARC-1886X-8X is widely compatible and supported in Windows, MAC, Linux, VMware, FreeBSD and Solaris. Applications that benefit most features from these controllers include server RAID solutions, web servers, super-computing, near-line backup, server virtualization, security systems and streaming applications.
Unique Features
- Driver Support up to 128 per ports.
- Tri-mode Dual Core ARM A15 1.6GHz ROC with SAS controller.
- 8GB on-board DDR4-2666 SDRAM with ECC Protectiont.
- Supports up to 2 * HD mini-SAS ports (SFF-8644 to SFF-8088 cables available), 8 hard drives direct connect or 128 drives per port using SAS-expander.
- Low-profile supported.
- Multi-adapter support for large storage requirements.
- Supports RAID 0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk or JBOD.
- Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID100).
- Multiple RAID set supported.
- Online RAID level/stripe size migration, online capacity expansion and RAID level migration simultaneously.
- Instant availability and background initialization.
- Support global and dedicated hot spare.
- Support NTP protocol synchronize RAID controller clock over the on board Ethernet port.
- NVRAM for RAID configuration & transaction log.
- Redundant flash image for adapter availability.
- SMTP support for email notification.
- SNMP support for remote manager.
- Field-upgradeable firmware in flash ROM.
- Web browser-based storage manager via Http proxy server for all operating systems or via onboard Ethernet port .
- Web browser-based storage manager, SMTP manager, SNMP agent and Telnet function via Ethernet port.
- Optional backup battrey module, BBM, support (AC-SAN-1883XBBM).
- Supported OS:
- Windows 7/2008/Vista/XP/2003
- Linux
- FreeBSD
- VMware
- Solaris 10/11 x86/x86_64
- Mac OS X 10.4.x/10.5.x/10.6.x/10.7.x
|
Model
|
HA-ARC-1886-8X
|
|
Host Interface
|
PCIe 4.0 x8
|
| Controller Interface |
SAS/SATA 12G or 6G |
| On Board Cache |
2GB on-board DDR3-1866 SDRAM with ECC |
| IO Processor |
Dual-core 1.2GHz RAID on Chip |
| Connector |
2 x HD Mini-SAS (HD mini-SAS ports (SFF-8644 to SFF-8088 cables available), support SAS-Expander for 128 drives per ports |
| RAID Level |
0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk or JBOD |
| Backup Battrey Module (BBM) |
Optional (Part number: AC-SAN-1883XBBM) |
| OS Supports |
Windows 7/2008/Vista/XP/2003
Linux
FreeBSD
VMware
Solaris 10/11 x86/x86_64
Mac OS X 10.4.x/10.5.x/10.6.x/10.7.x |
